B&G NAC-3 Core Pack Stuurautomaat
Beschrijving
NAC-3 stuurautomaatcomputer
De NAC-3 stuurautomaatcomputer is het brein achter uw B&G stuurautomaat. De NAC-2 bevat de elektronica voor de bediening van een hydraulische stuurpomp of mechanische aandrijfeenheid, en werkt ook samen met andere componenten, zoals koerssensoren en roerstandterugmelders. De NAC-3 is ontworpen voor boten met lengte van meer dan 10 meter (35 voet) en is geschikt voor pompen met hoge stroomsterkte, mechanische aandrijfeenheden en magneetventielen (30 A continu/50 A piek).
NAC-3 Autopilot Core Pack: Comprising the high-current NAC-3 autopilot computer, Precision-9 compass and RF-25 rudder feedback unit. Ideal for vessels above 10 metres/35 feet in length.
NAC-3 Autopilot Computer The NAC-3 Autopilot Computer is the brains behind your B&G autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats ten metres (35 feet) or greater in length and is rated to operate high-current pumps, mechanical drive units, and solenoid valves (30 amps continuous/50 amps peak).
- B&G Reflex Sailing algorithms
- Plug and Play installation
- 12/24V input 8A continuous output, 12A peak
- Solenoid output capable
- 3A clutch output
- Optional Auto/Standby Switch
Precision-9 Compass The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.
- Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000®
- Heading and ROT calculated using sensor data from 9 axes of rotation and motion
- Accurate and reliable solid-state sensor technology
- Heading accuracy of ±2° after calibration
- Easily adjustable mounting bracket allows bulkhead or up-mast installation
- IPX7 waterproof. Best in class.
- Simple installation with a single NMEA 2000® connection
RF25 Rudder Feedback Unit The RF25 is a medium duty rudder feedback unit with a micro-C interface. The RF25 will attach directly to industry standard micro-C systems for straight-forward installation.
- +/- 120 Degree Measurement
- Precise and Accurate; +/- 0.5 Deg
- Micro-C Connectivity
- 5.5m attached micro-C Cable

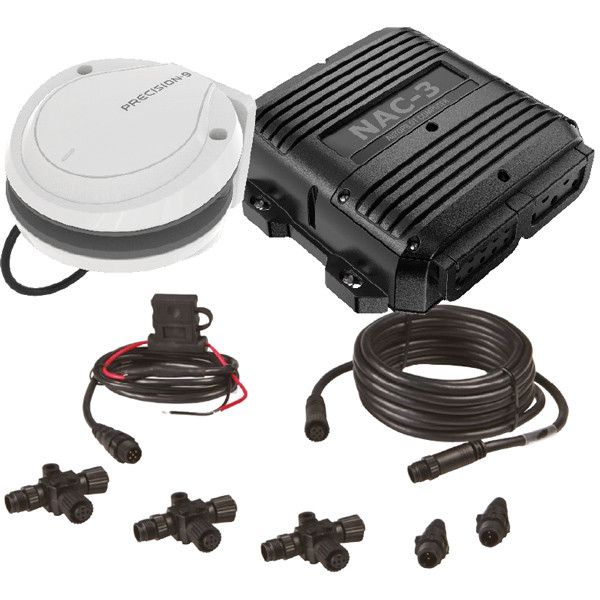

In the box
- NAC-3 Course Computer
- Precision-9 Compass
- RF25 Rudder Feedback Unit
- NMEA 2000 Backbone kit
Specificaties
Artikelnummer | 000-13336-001 |
---|---|
Artikelstatus | Leverbaar |
EAN | 9420024155646 |
Merk | B&G |
Max. Waterverplaatsing | 15.000 kg, 20.000 kg |
Type | Hydraulisch, Solenoïde |
